MIXING GROUP
TT-M/R
- with high-efficiency pump WILO Para 15/6 SC
Specifications:
| Manifold connection: | 1" male thread for manifold type VA |
| Pump: | WILO Para 15/6 SC, 130 mm |
| Closure: | Ball valves DN 25 |
| Supply: | Regulating and shut-off fitting DN 20 |
| Return: | Valves DN 20 with pre-setting |
| • M30x1.5 mm threads | |
| • for thermostat TT-MTWZ-M | |
| • servomotor retrofitted | |
| • Kvs 2.74 | |
| Connections: | ¾" female thread |
| Length: | 280 mm |

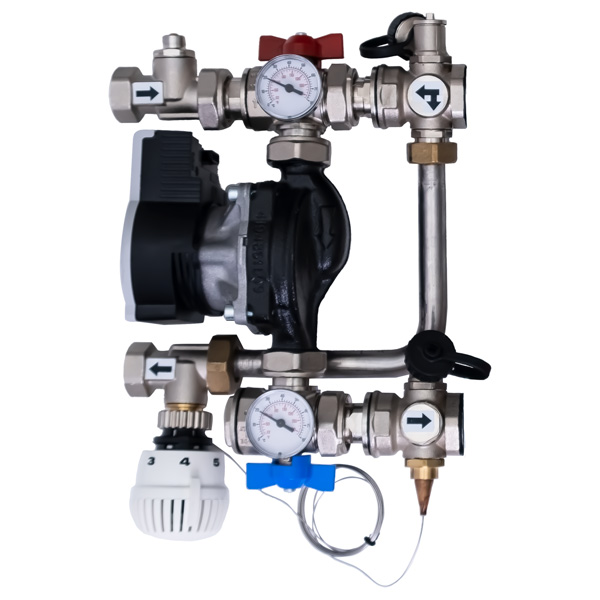

Compact mixing group TT-M for underfloor heating at high temperature radiator circles. Consisting of supply and return valve, high-efficiency pump WILO Para 15/6 SC, two ball valves 1″ and union parts for connection to the manifold. Safety temperature limiter (STB-A) and two thermometers for temperature control. With assembly instructions packed in a carton.
