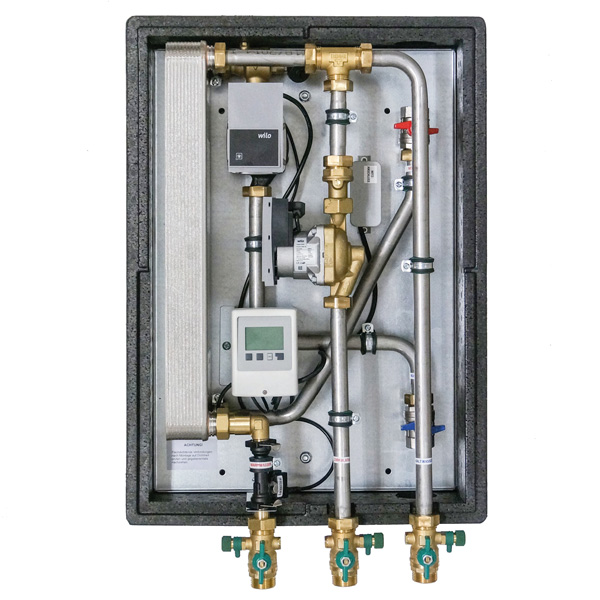

DHW MODULE
eFWZ 40
- for centralized DHW heating with flow principle and high-efficiency pumps
Dimensions (WxHxD): 480 x 675 x 240 mm
| Primary Heating |
Secondary Drinking water |
|
| Pressure rating: | PN 6 | PN 10 |
| Max. temperature: | 110 °C | 75 °C |
| Connection dimensions: | DN 25 | DN 20 |
| Connection threads: | 1" female thread | 1" male thread |
Our DHW unit eFW 40 is heating the domestic water centrally and supplying it via hot water pipeline to the domestic water tapping points. A buffer tank is necessary in order to provide the required heating water quantity for heating the domestic water! The DHW water is only heated when “Just in Time” is requested. There is no storage of hot water!
| Performance characteristics: | PI1* | PI2* |
| DHW capacity: | 90 KW | 100 KW |
| Mass flow primary: | 1745 kg/h | 1769 kg/h |
| Supply temperature: | 60 °C | 70 °C |
| Return temperature: | 16 °C | 22 °C |
| DCW / DHW temperature: | 10 °C / 45 °C | 10 °C / 60 °C |
| Tap performance: | 36 l/min | 28 l/min |
*PI1 = Performance indicator 1 (water temperature set to 45°C, primary supply temperature 60°C, cold water temperature 10°C)
*PI2 = Performance indicator 2 (water temperature set to 60°C, primary supply temperature 70°C, cold water temperature 10°C)
