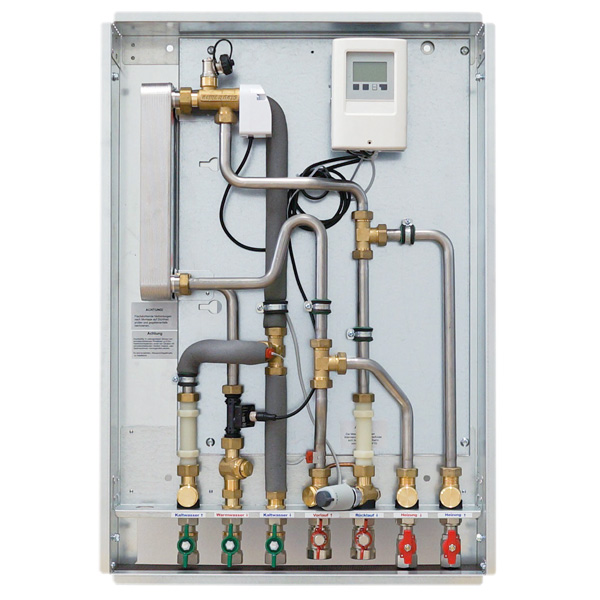

DHW station BM-H

DHW STATION

BM-H

  • for underfloor heating and decentralised heating, with step a valve technology

Specifications:

Primary
Heating
Secondary
Underfloor heating

Drinking water
Pressure rating: PN 6 PN 6 PN 10
Max. temperature: 90 °C 60 °C 75 °C
Connection dimensions: DN 25 DN 20 DN 20
Connection threads: 1" female thread ¾" female thread ¾" female thread


DHW heating in the flow principle:

The domestic hot water is heated in the flow principle only during the request via a stainless steel plate heat exchanger. A temperature and flow sensor according to the vortex principle detects the temperatures and flows. The controller regulates the necessary heating energy for the plate exchanger by means of a step a valve stepper motor valve. The plate exchanger is not kept warm. Unnecessary circulation loss is avoided and increased legionella formation is effectively prevented.
