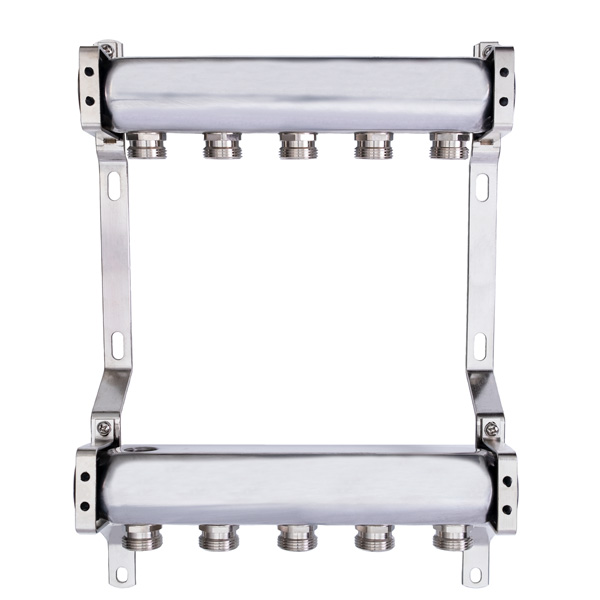

MANIFOLD FOR RADIATORS
L-HK
- with Eurocone connections
Specifications:
| Manifold: | Stainless steel AISI 304 |
| Dimension: | DN50 stainless steel profile, 1760 mm² cross-sectional area |
| Connections: | 1¼" female threads on both sides |
| Supply: | ¾" male Eurocone |
| Return: | ¾" male Eurocone |
| Connections: | Center distance 50 mm |
| Pressure stage/ system: | PN16 for heating systems with water quality according to VDI 2035 |
Stainless steel manifold packages include supply manifold and return manifold. Delivered in a box with noise reducing brackets and stickers.
