REGULATION GROUP
TT-R2
- with high-efficiency pump
Specifications:
| Manifold connection: | 1" male threads for manifold type VA |
| Pump: | HE 15-60/130 |
| Shut-off: | Ball valves DN 25 |
| Supply: | Regulating and shut-off fittings DN 20 |
| Return: | Pre-settable valves DN20 |
| • M30x1.5 mm connecting thread | |
| • for thermostat TT-MTWZ-M | |
| • actuators can be retrofitted | |
| • Kvs 2.74 | |
| Connections: | ¾" female threads |
| Length: | 230 mm |

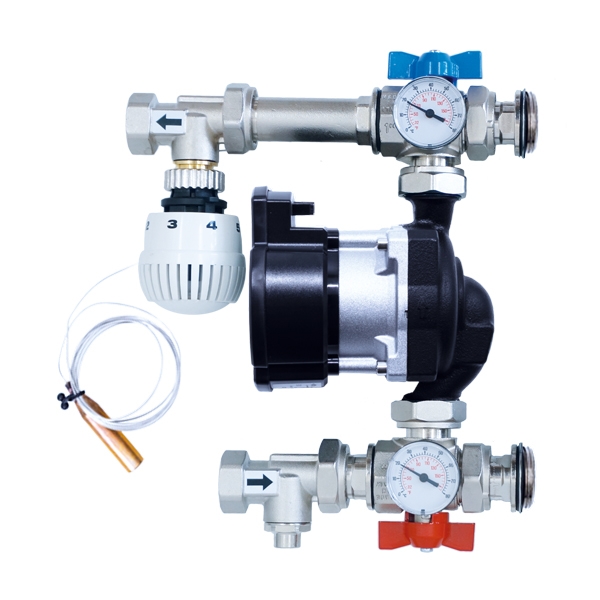

Compact regulation group TT-R2 for floor heating on radiator heating circuit control. Consisting of suppyl and return valve, high-efficiency pump Type HE 15-60/130, two ball valves 1″ and screw fittings for connection to the manifold. Safety temperature limiters (STB-A) and two thermometers for temperature control. Packed in a box with assembly instructions.
