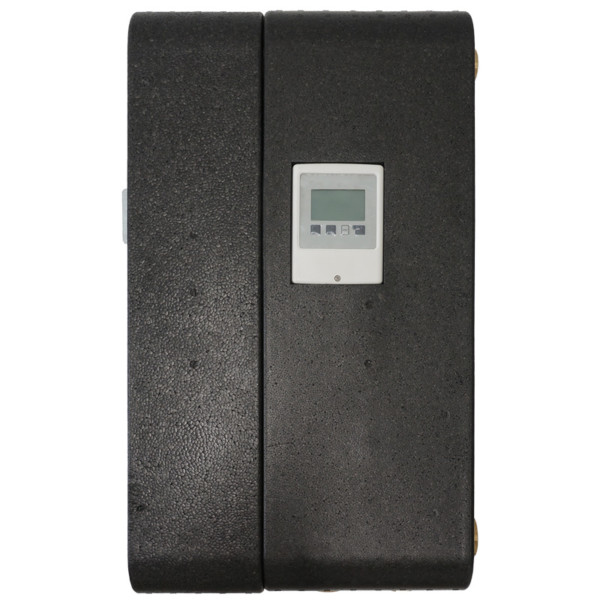

FRESH WATER STATION
eco 40
- for central drinking water heating using the flow principle
Dimensions (WxHxD): 320 x 570 x 155 mm
| Primary Buffer tank |
Secondary Drinking water |
|
| Pressure stage: | PN 6 | PN 10 |
| Temperature (temporary): | 110 °C | 75 °C |
| Connection dimensions: | DN 25 | DN 25 |
| Thread: | 1" screwcap | 1" screwcap |
Our eco 40 fresh water station heats up the drinking water centrally and it is distributed to the tapping points via the hot water pipe. A buffer tank is necessary so that a sufficient heating water volume flow is provided for heating up the drinking water. The drinking hot water is only heated on demand „Just in Time“. There is no storage of drinking hot water!
| Performance data: | PI1* | PI2* |
| HW performance: | 90 KW | 91 KW |
| Mass flow primary: | 2163 kg/h (36,1 l/min) | 2151 kg/h (35,85 l/min) |
| Supply temperature: | 60 °C | 70 °C |
| Return temperature: | 24 °C | 34 °C |
| CW / HW temperature: | 10 °C / 45 °C | 10 °C / 60 °C |
| Tap performance: | 37 l/min | 26 l/min |
Attention! Standard operation is guaranteed at 50-75°C, if necessary install a pre-mixer
*PI1 = Performance indicator 1 (at set hot water temperature 45°C, at primary supply temperature 60°C, at cold water temperature 10°C)
*PI2 = Performance indicator 1 (at set hot water temperature 45°C, at primary supply temperature 60°C, at cold water temperature 10°C)
