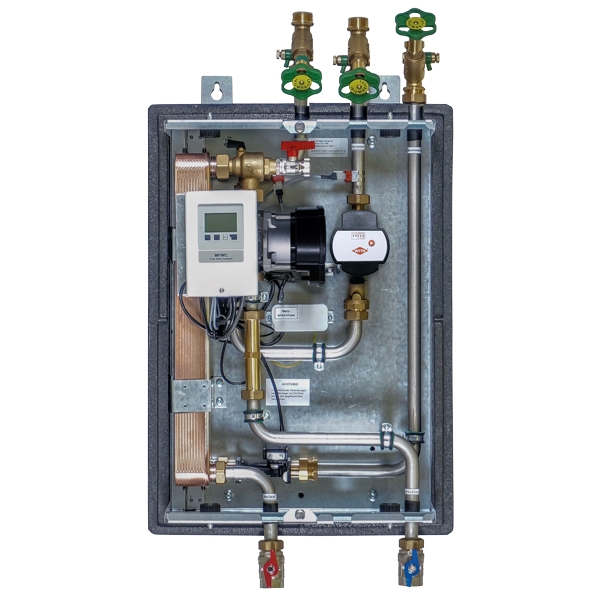

FRESH WATER STATION
FW-EZ 40
- for central drinking water heating using the flow principle
Dimensions (WxHxD): 480 x 675 x 240 mm
| Primary Buffer tank |
Secondary Drinking water |
|
| Pressure stage: | PN 6 | PN 10 |
| Max. temperature: | 110 °C | 75 °C |
| Connection dimensions: | DN 25 | DN 20 |
| Thread: | 1" female threads | 1" male threads |
Our FW-EZ 40 / FW-E 40 fresh water station heats up the drinking water centrally and it is distributed to the tapping points via the hot water pipe. A buffer tank is necessary so that a sufficient heating water volume flow is provided for heating up the drinking water. The drinking hot water is only heated on demand „Just in Time“. There is no storage of drinking hot water!
| Performance data: | PI1* | PI2* |
| HW performance: | 90 KW | 100 KW |
| Mass flow primary: | 1745 kg/h | 1769 kg/h |
| Supply temperature: | 60 °C | 70 °C |
| Return temperature: | 16 °C | 22 °C |
| CW / HW temperature: | 10 °C / 45 °C | 10 °C / 60 °C |
| Tap performance: | 36 l/min | 28 l/min |
Attention! Standard operation is guaranteed at 50-75°C, if necessary install a pre-mixer
*PI1 = Performance indicator 1 (at set hot water temperature 45°C, at primary supply temperature 60°C, at cold water temperature 10°C)
*PI2 = Performance indicator 1 (at set hot water temperature 45°C, at primary supply temperature 60°C, at cold water temperature 10°C)
